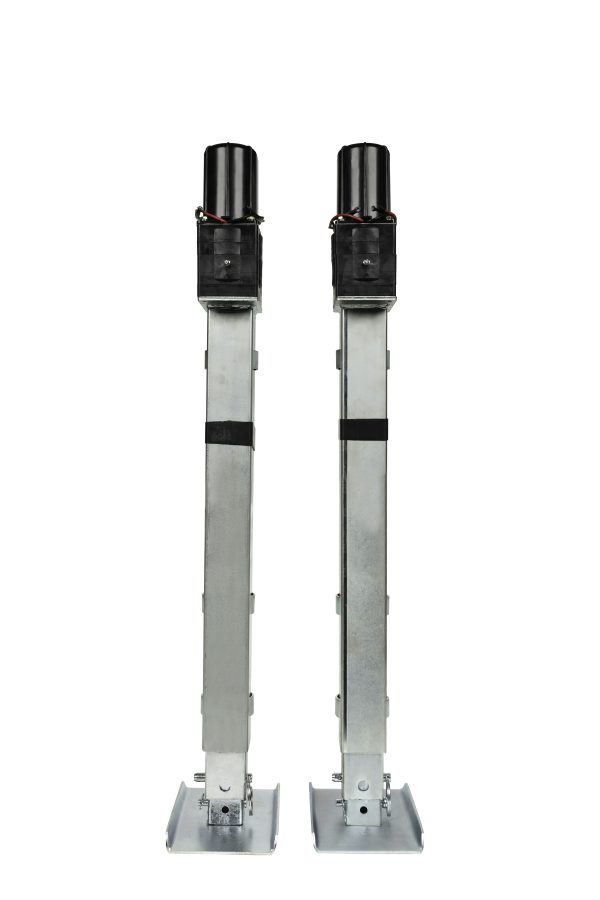

ULTRA DELUXE 5TH WHEEL LANDING GEAR

$801.90

SKU: 17-943010 Category:
  • Two Powerful 12 Volt Motors Eliminate Hand-Cranking
  • Lifts And Levels 5th Wheel At The Flip Of A Switch
  • Built-In Clutch Ratchets To Prevent Damage
  • Allows For Independent Positioning Of Foot Pads
  • Especially On Uneven Surfaces
  • Features 21″ Down-Stroke Plus Adjustable Drop Tubes
  • Creating Up To 38″ Of Total Lift
  • 36.5″ Overall Retracted Length
  • 12,000 Lb Combined Lifting Capacity
  • Kit includes mounting hardware, wire harness and both switches
Weight 75 lbs
Dimensions 40 × 11 × 6 in
Ultra Deluxe Landing Leg 17-841002
1
LOWER STEM 5TH WHEEL Part Number: 17-766004Price: $187.63
2
MOTORGEAR ASSEMBLY 5TH WHEEL Part Number: 17-750007.003Price: $244.38
3
HOUSING-MOTOR 5TH WHEEL Part Number: 17-741622Price: $4.89
4
GASKET-CORK 1/16 Part Number: 17-141008.003Price: $4.05
5
BOLT M6X110 MM Part Number: 39-113369Price: $2.27
6
HANGER-NEW FOR SMALL 5TH JACK Part Number: 17-741439Price: $13.85
7
BOLT-3/8-16 X 3 1/2" CARRIAGE Part Number: 17-113360Price: $2.15
8
WASHER-LOCK 3/8 SPLIT ZINC Part Number: 17-113107Price: $0.36
9
NUT-3/8-16 HEX ZINC Part Number: 17-113105Price: $1.48
JACK-5TH WHEEL SINGLE COMPLETE Part Number: 17-841002Price: $324.10
SINGLE SWITCH ASSEMBLY Part Number: 17-840008Price: $62.43
HOUSING-SWITCH Part Number: 17-741024Price: $2.08
BOOT-SWITCH SEAL Part Number: 17-143097Price: $6.48
GASKET-SWITCH COVER Part Number: 17-741026Price: $1.92

    Warning: Invalid argument supplied for foreach() in /home/siteultrafab/public_html/wp-content/themes/astra-child/inc/replacement-parts.php on line 110

    Warning: Invalid argument supplied for foreach() in /home/siteultrafab/public_html/wp-content/themes/astra-child/inc/replacement-parts.php on line 126
Warning: Invalid argument supplied for foreach() in /home/siteultrafab/public_html/wp-content/themes/astra-child/inc/replacement-parts.php on line 147

~~5th Wheel Jack Instructions 11-30-17
